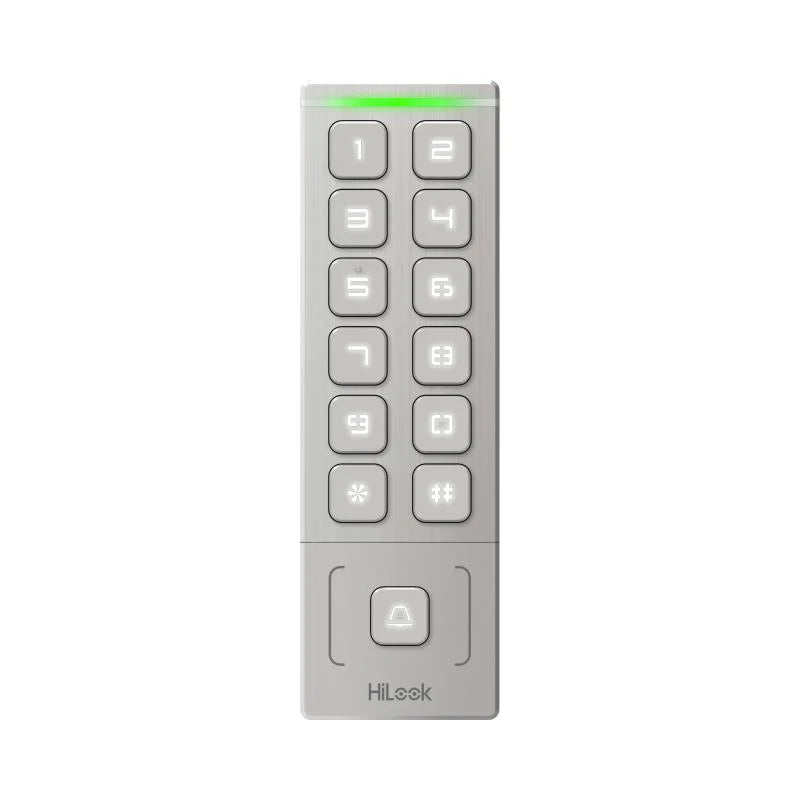

Hikvision Hilook Access control Terminal

> Slim and flexible design with metal.
> Max. 1000 cards and 1000 users.
> Built-in card reader for M1 card reading.
> Outdoor application, supports IP65.
> Supports multiple authentication types: card, PIN.

Specification
System
ROM 64 K
RAM 8 K
Processor GD32E230K8
Audio
◼ Power output 6 W
Interface
Lock control 1
Exit button 1
Door contact input 1
Alarm output 1
Wiegand Wiegand out, supports Wiegand 26/34
Capacity
User capacity 1000
Card capacity 1000
Authentication
Card type M1 card
Card reading distance 3 cm
Card reading duration 1 s
General
Button Physical buttons
Indicator Support
Power supply 12 VDC, 1 A
Working temperature -40 °C to 65 °C (-40 °F to 149 °F)
Working humidity 0 % to 90 % (no condensing)
Protective level IP 65
Dimensions 151 mm × 48 mm × 21.5 mm (5.9" × 1.9" × 0.8")
Weight
Net weight: 220.3 g (0.5 lb)
Rough weight: 352 g (0.8 lb)
